Mild Tripod

Tripod fractures are a set of fractures of the zygoma and are also known as  zygomaticomaxillary complex fractures. These are termed tripod fractures since the fracture involves the three buttresses of the zygoma - the frontozygomatic suture, zygomaticomaxillary sutures, and the zygomaticotemporal suture. Occasionally, a fourth suture may be involved - the zygomaticosphenoid suture. The zygomaticomaxillary complex can be considered as a quadripod structure because of its relationship to the frontal bone, maxilla, temporal bone, and skull base. Tripod fractures should be distinguished from isolated fractures of the zygomatic arch. Tripod fractures demonstrate variable severity manifested by their degree of zygoma fragmentation and sutural separation. Surgery is performed to reestablish the correct positioning of the malar prominence.




Scrollable Stack Images


Images show a mild tripod fracture on the left. Minimal widening of the frontozygomatic, zygomaticomaxillary, and the zygomaticotemporal sutures can be appreciated. A minimally displaced right temporal bone skull fracture can also be seen.



Static 2D

Click to enlarge

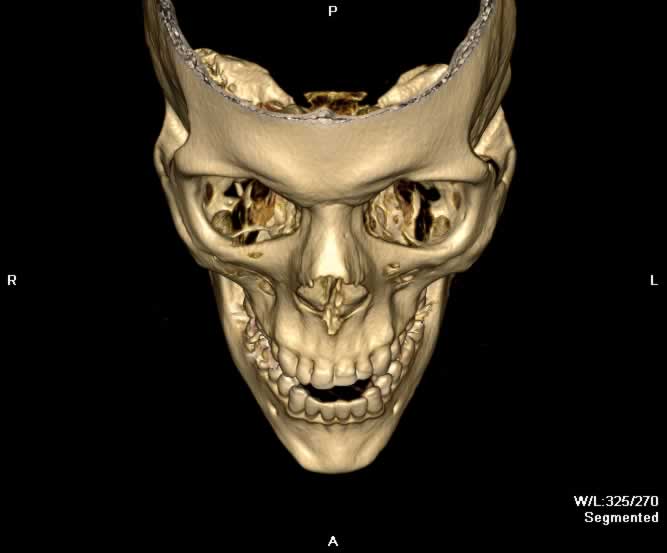

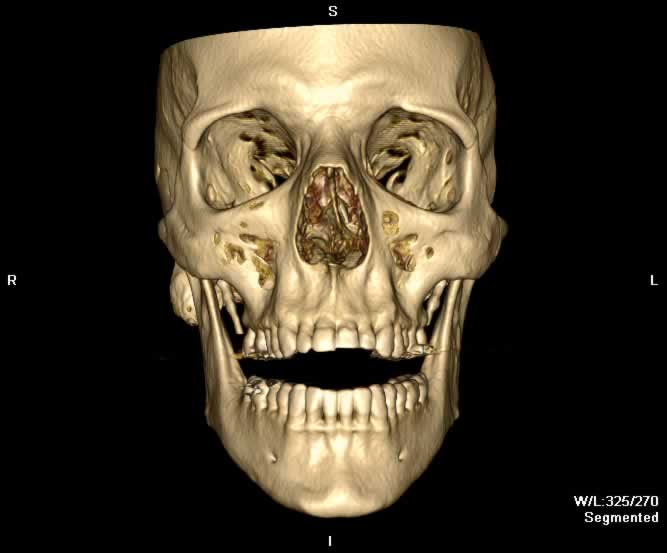

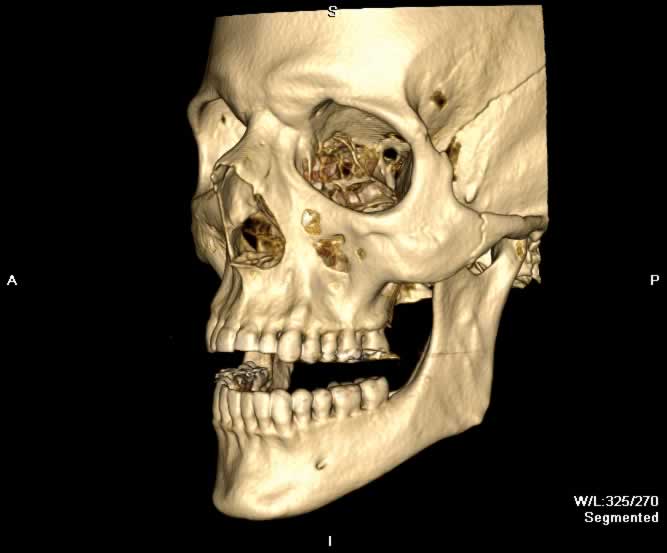

Static 3D

Click to enlarge

Rotating 3D

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player






















































Return to top

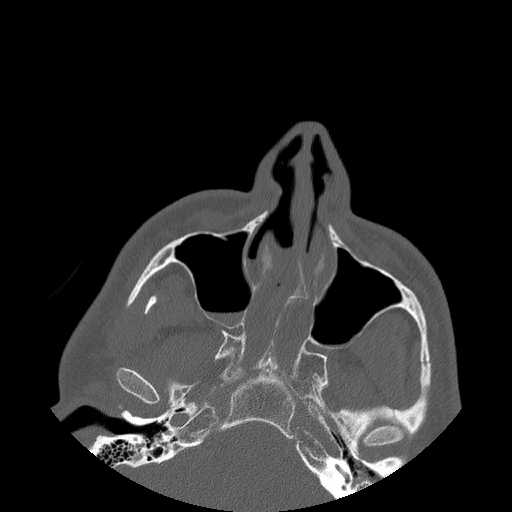

Axial image demonstrates slight widening of the zygomaticotemporal suture on the left.






































Return to top


A more cephalad axial image demonstrates minimal widening of the frontozygomatic suture.






































Return to top

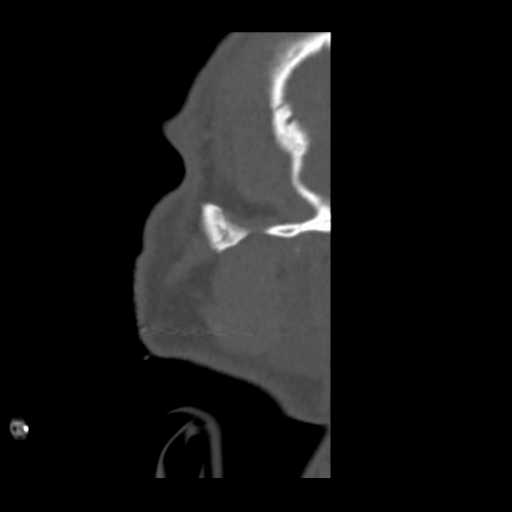

Sagittal image demonstrates minimal widening of the zygomaticotemporal suture.






































Return to top

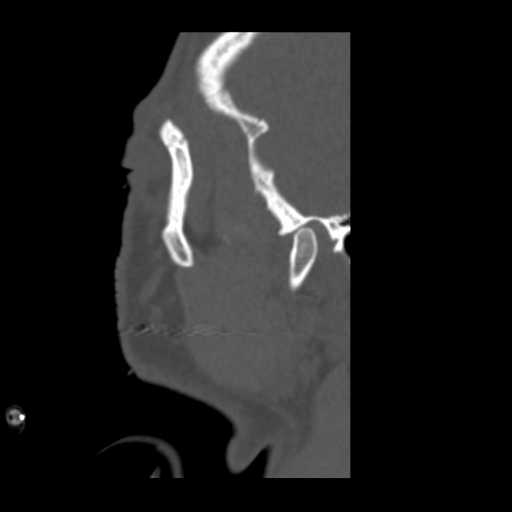

A more medial sagittal image demonstrates minimal widening of the frontozygomatic suture.



































Return to top












































Return to top









































Return to top









































Return to top
