Nasal Bone

Nasal bone fractures are the most commonly found and also the most commonly missed facial fracture. They frequently occur in caudal portions of the nasal bones since they are weaker. Fractures of the nasal bone can be transverse or longitudinal. Displacement depends on whether the force was frontal or lateral. CT is a significantly more useful adjuvant to the physical exam for assessment of nasal bone fractures in comparison to lateral plain radiographs. Plain radiographs often yield false positives for transverse fractures from the longitudinal nasomaxillary suture and groove for the nasociliary nerve. Septal deviation and fracture should prompt assessment for a septal hematoma, which can result in cartilage necrosis and saddle nose deformity. Uncomplicated nasal bone fractures have clinical relevance since they can lead to poor cosmesis.




Scrollable Stack Images


Images show displaced comminuted fractures of the nasal bones with swelling and subcutaneous air in the overlying soft tissue.The nasal bones are displaced to the right. A buckle fracture of the mid nasal septum can also be appreciated. No additional fractures are seen.



Static 2D

Click to enlarge

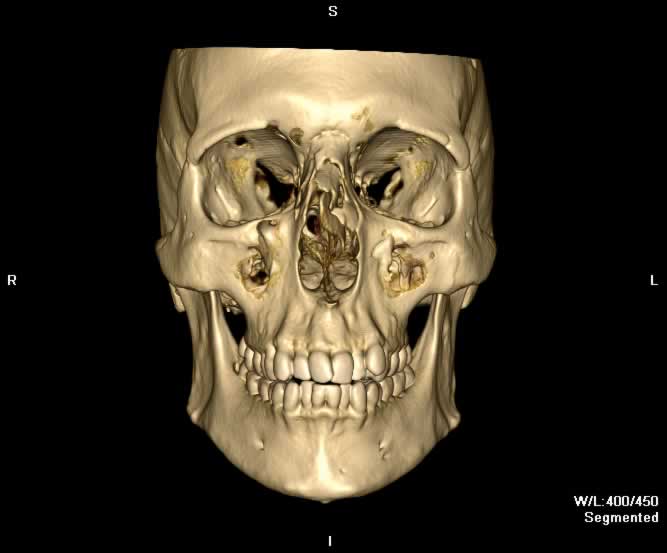

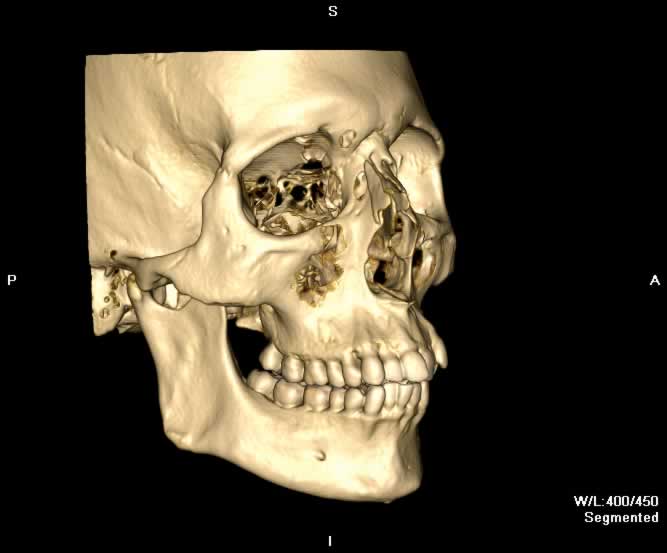

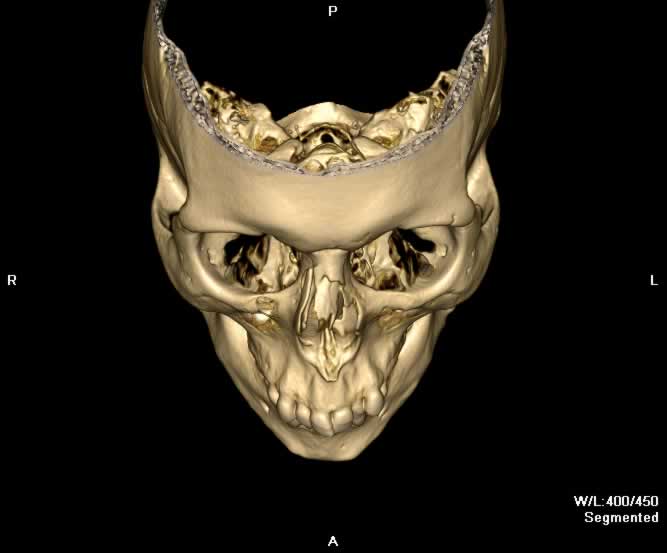

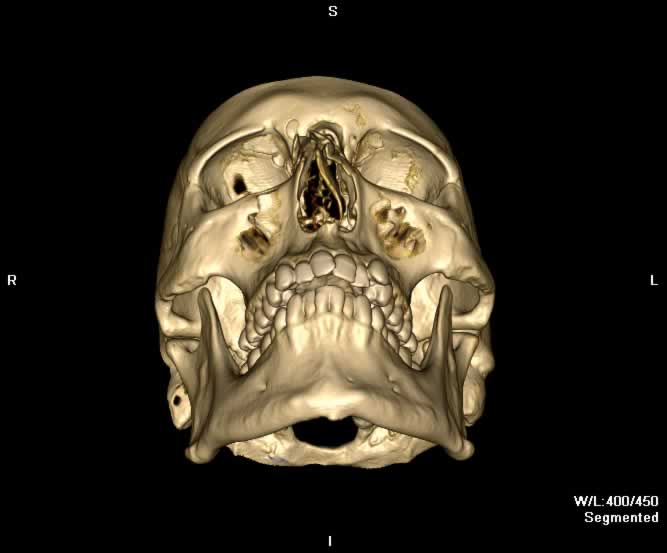

Static 3D

Click to enlarge

Rotating 3D

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player






















































Return to top

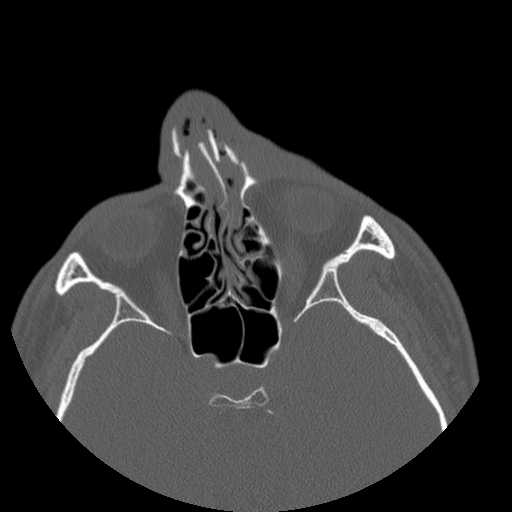

Axial image demonstrates nasal bone fractures deviated to the right. Soft tissue swelling overlying the nasal bones can be appreciated.






































Return to top

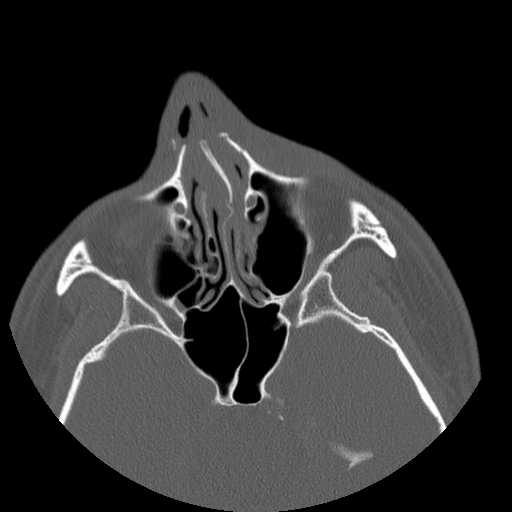

A more cephalad axial image demonstrates a buckle fracture of the midportion of the nasal septum. Hemorrhagic opacification of the ethmoid sinsues is seen.






































Return to top

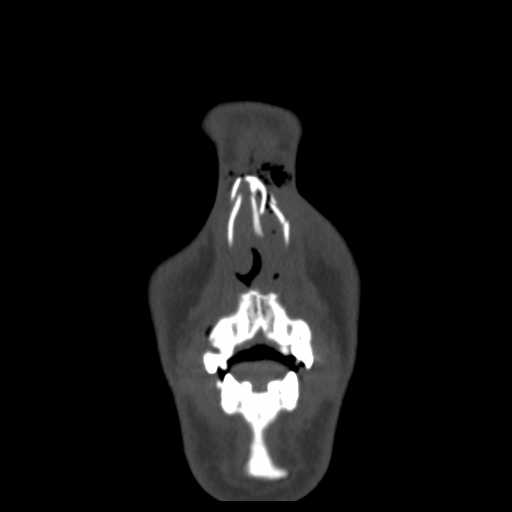

Coronal image demonstrates communition of both nasal bones and deviation of the fracture fragments to the right.






































Return to top


Sagittal image demonstrates posterior displacement of the nasal bones in relation to the nasal ridge. Subcutaneous emphysema overlying the nasal bone can be appreaciated.



































Return to top












































Return to top









































Return to top









































Return to top
